Auto generator start/stop
● Smoothly works with diesel generator
● Lower fuel consumption
● Works in quite mode
Reliable & flexible
● Supports multi-machine parallel connection, up to 8 units in parallel
● Flexible application for on site use
System overview and Remote control
● Displays battery charging and consumtion status
● Supports remote monitor& control through network
Why choose us?
● World leading R&D specilized on innovating and sustatained energy storage solution
● Providing one-stop service solution specifically designed for your need
● Product customization is acceptable
● 24/7 customer service feel free to inquire at any time

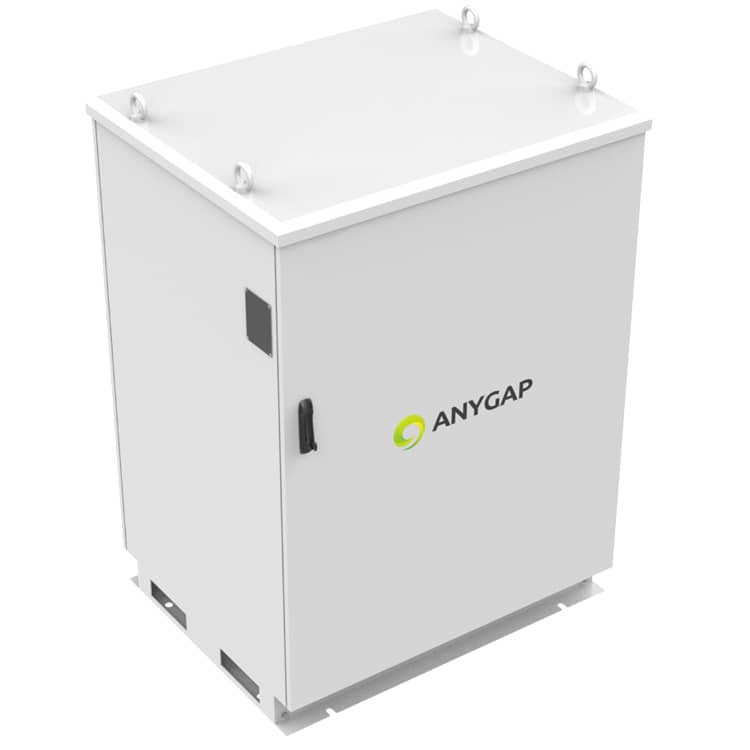

High Voltage Hybrid Energy Storage System Specification parameters:
Technical Parameters: | EGO 20KW/25KW/30kW |
INPUT & OUTPUT | |
AC Input | 380 – 415VAC 3PH |
Output Voltage | 400/230VAC±2% Frequency: 50Hz 0.1% |
Cont.output power | 30KW |
Peak output power | 40KW |
Inlets(standard | 125A 3PH |
Outlets(standard) | 1 X 125A 3PH and 1 x 63A 3 * 32A 1PH |
SOLAR CHARGE | |
Max output crrent | 50A |
Max PV power suggested | 36kw |
Max PV open circuit voltage | 750VDC |
MPPT Voltage Range | 200-700VDC |
Max. Input Crrent (A) | 96A |
Number of MPPTs | 1 |
Solar Array Switch | Integrated |
PV Input type | MC4*6 |
BATTERIES |
|
Nominal Battery Voltage (V) | 614VDC |
Battery Type | LiFePO4 |
Capacity (80% DOD) | 61.44kWh(Usable 48kWh) |
Cydlic Life | 6000 |
Battery Voltage Range | 480-700.8VDC |
Max Charging/Discharging Current | 100A |
